3D Graphics Visualization


generate/do-it.gif    Version Evolution and Update

Supports zooming, panning, rotation, and selection controls.

Interactive 3D Graphics Features

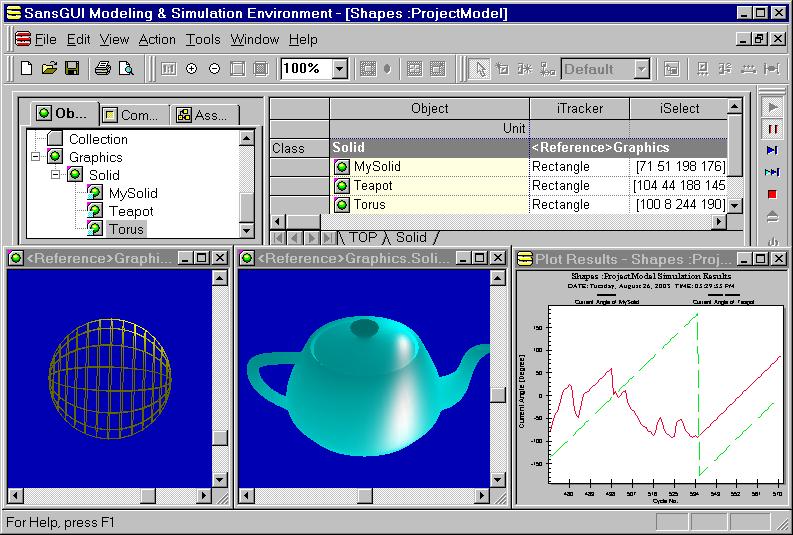

The Graphics class supports multi-threaded, multi-window management and interactive 3D graphics operations, such as translation, rotation, zooming in and out, and user selection. Simulation run control and data synchronization between animated 3D graphics and dynamic charts are coherently supported by SansGUI.

generate/chartgraphics.jpg

Useful Supported Features

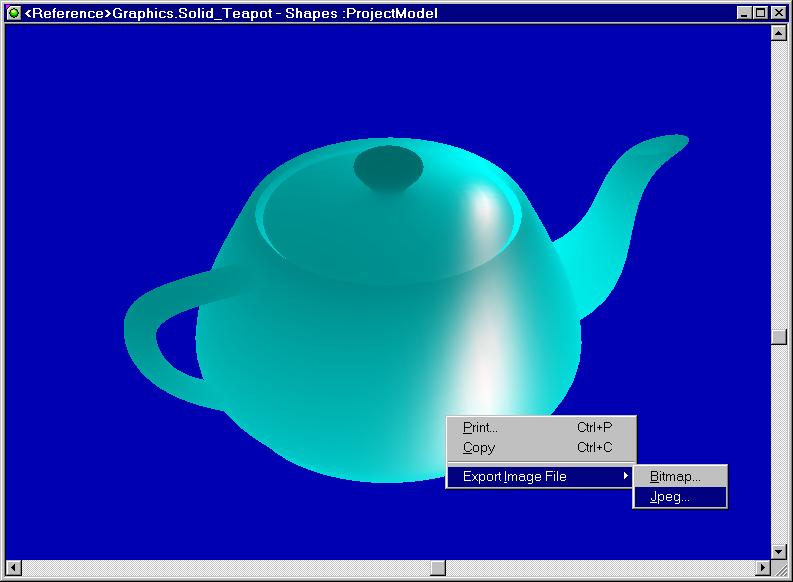

In addition to 3-dimensional graphical operations, the 3-D view can be printed, copy to clipboard, and exported to bitmap or JPEG image files.

generate/featgraphics.jpg
