Data Modification and Visualization


generate/do-it.gif    3D Graphics Visualization

Change values and plot data dynamically during run-time.

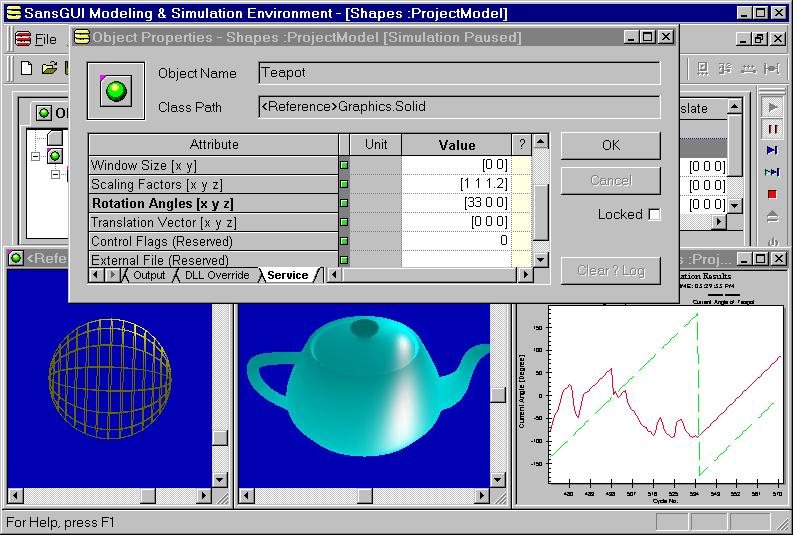

Data Modification

While a simulation is paused, the data can be examined and modified if needed.

generate/datachange.jpg

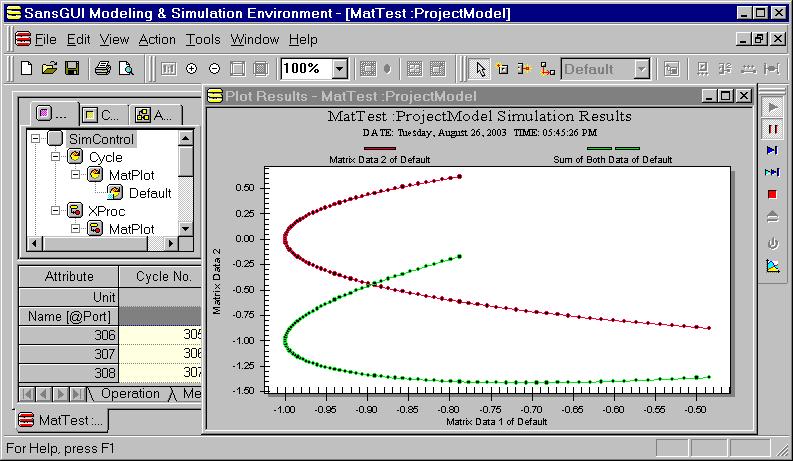

Dynamic Charting

The user can control the number of data points to be plotted at each frame in the dynamic chart during a simulation run. With SansGUI's dynamic charting facility, displaying strip charts in scientific and engineering applications becomes very simple; it does not require any programming by the simulation developers or users.

generate/dynchart.jpg
