In-Process Simulation Support


generate/do-it.gif    External Process Support

Build highly interactive simulation control.

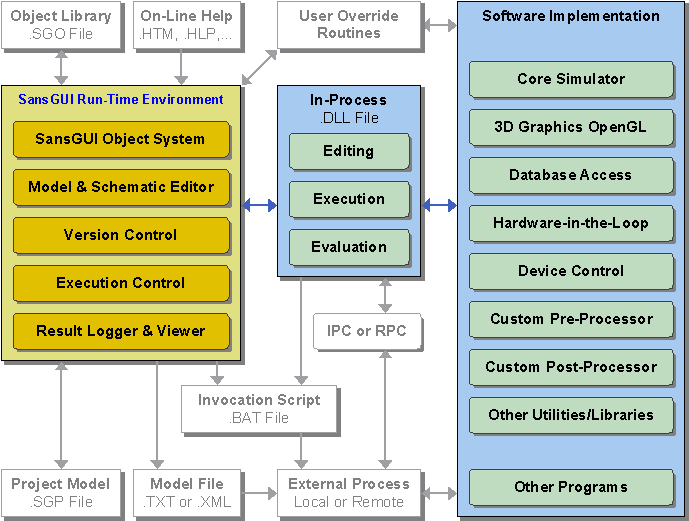

Architecture of In-Process Simulation

In-process simulation means that the simulation will be executed in a thread inside the SansGUI process. The simulator will be using the same memory space that SansGUI allocated for the users's model. The results are highly interactive, fine-grain control of simulation runs. This mechanism makes pause, step-wise, and fast forward execution of simulation possible, in addition to dynamic charting and animated 3D graphics.

Generate/in-process_simulation_su.gif

Simulation Control

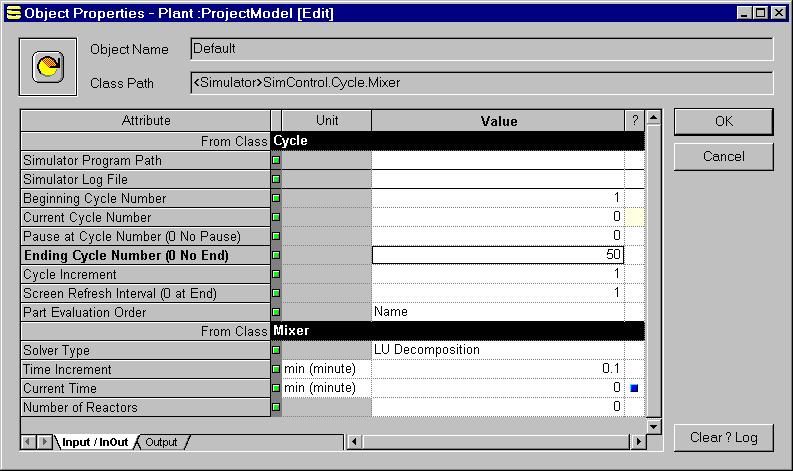

The in-process simulation control parameters are depicted in the following figure. The developer can add new attributes to the control class for global access because the simulation control object is passed to all the class functions in the SansGUI API. All of the intrinsic parameters have default values and can be explicitly overridden by the user.

generate/incontrol.jpg
